Entertainment

• SiriusXM, delete
• 6-speaker audio system

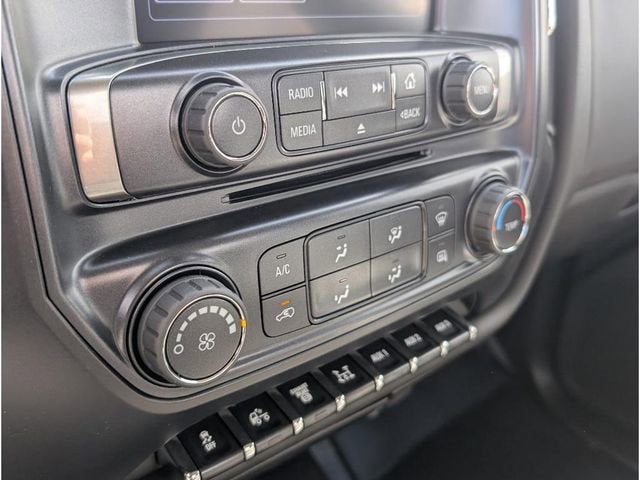

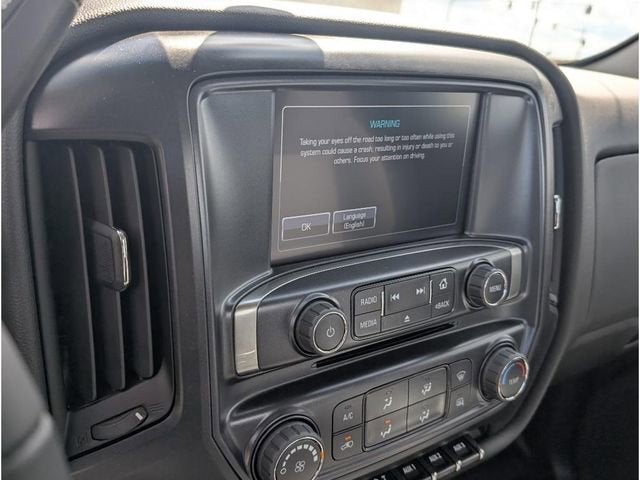

• Audio system, Chevrolet Infotainment System with 8" diagonal color touch-screen:
  • AM/FM stereo with seek-and-scan and digital clock, includes Bluetooth® streaming audio for music and select phones; USB ports; auxiliary jack; voice-activated technology for radio and phone; and Shop with the ability to browse, select and install apps to your vehicle. Apps include Pandora, iHeartRadio, The Weather Channel and more.
  • (Includes (TG5) Single-slot CD/MP3 player, (UQ3) 6-speaker audio system, (UDD) 4.2" diagonal Driver Information Center, (NP5) Leather-wrapped steering wheel, and (UK3) Steering Wheel Audio Controls. Requires (A52) Front 40/20/40 split-bench seats.)
• Single-slot CD/MP3 player

Exterior

• Glass, solar absorbing, tinted
• Grille guard screen, insect protection (mounted behind grille)
• Antenna, fixed mast
• Spare tire delete (STD)
• Wheel, spare delete
• Door handles, Black
• Front fender extension, painted body color
• Lamps, cargo area, cab mounted with switch on center switch bank
• Lamps, Smoked Amber roof marker
• Headlamps, halogen projector-beam
• Lamps, rear, stop/turn/backup (1-piece assembly) with license plate light
• Fog lamps, front, halogen
• Paint, solid
• Assist Steps, aluminum
• Tires, rear 225/70R19.5G traction blackwall Goodyear: Max Axle Load: 15,000 lb.

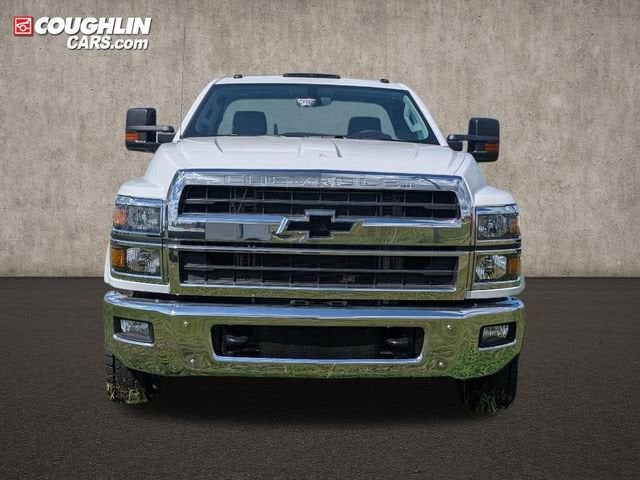

• Grille, chrome
• Air Compressor Accessory Drive
• Bumper, front chrome
• Provision for cab roof-mounted lamp/beacon: provides an overhead console mounted switch and electrical wiring tucked beneath the headliner for a body upfitter to connect a body-mounted warning or emergency lamp
• Tires, front 225/70R19.5G traction blackwall Goodyear: Max Axle Load: 7,940 lb.

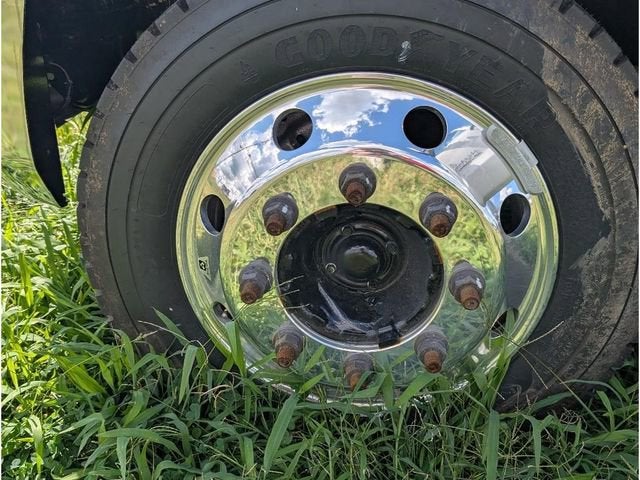

• Wheels, 19.5" x 6.75", 4-aluminum wheels, 8-holes, hub piloted: Dura-Bright finish is on the outside of the wheel
• Mirrors, outside heated power-adjustable vertical trailering, upper glass, manual-folding and extending, black.: Includes integrated turn signal indicators consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable) and addition of Auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp
• Grille guard screen, stone protection: (mounted to bumper)
• Summit White
• License plate kit, front
• Electrical Provisions, rear of frame, upfitter, body builder wiring: includes Sealed Connectors for Tail/Amber Turn/Marker/Backup/Accessory Power/Ground and Sealed Connector for Stop/Turn
• Paint Scheme, Style 1
• Spare tire delete: (STD)

Interior

• Visors, driver and front passenger, vinyl
• Seat trim, Vinyl
• Driver Information Center, 3.5-inch diagonal monochromatic display, provides warning messages and basic vehicle information (Included and only available with (IO3) Audio System with 4.2" diagonal color display.)

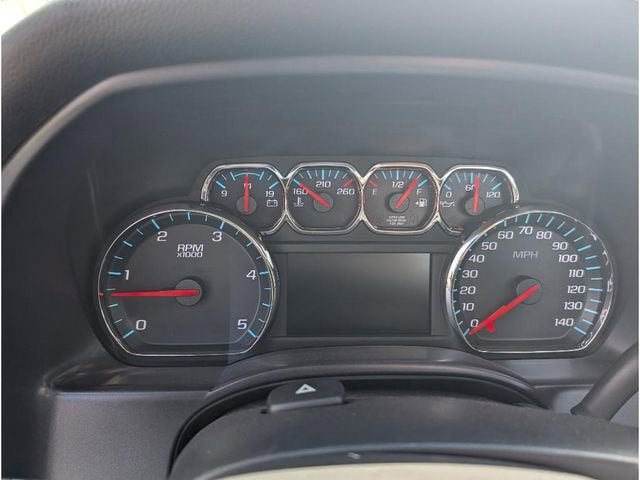

• Speedometer, miles/kilometers
• Interior trim, Jet Black/Dark Ash (Required and only available with (H2Q/H2R) Dark Ash seats with Jet Black interior accents.)

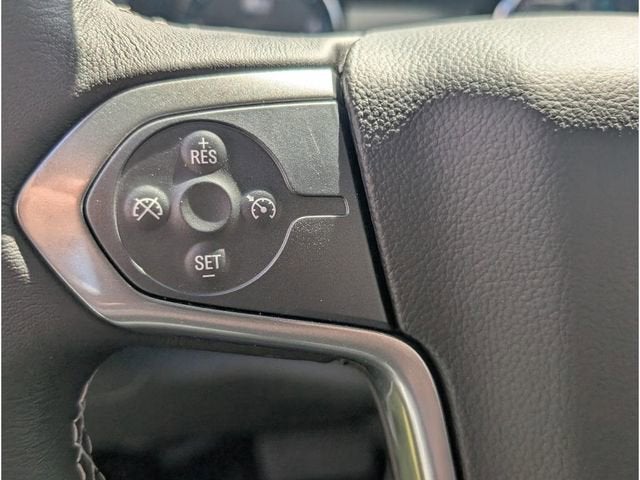

• Cruise control, steering wheel-mounted
• Door locks, power
• Air conditioning, single-zone
• Assist handle, front passenger and driver on A-pillars
• Floor covering, Graphite-colored rubberized-vinyl
• Steering wheel, urethane
• Upfitter switch kit provides up to 4-30 amp circuits to facilitate installation of aftermarket electrical accessories located on the instrument panel
• Steering column, manual Tilt-Wheel
• Mirror, inside rearview manual day/night
• Seat Belt, Black
• Dark Ash seats with Jet Black interior accents, Vinyl seat trim
• Driver Information Center, 4.2-inch diagonal color display, includes driver personalization, warning messages and vehicle information
• Back-up alarm calibration: This calibration will allow installation of an aftermarket back-up alarm by disabling rear perimeter lighting

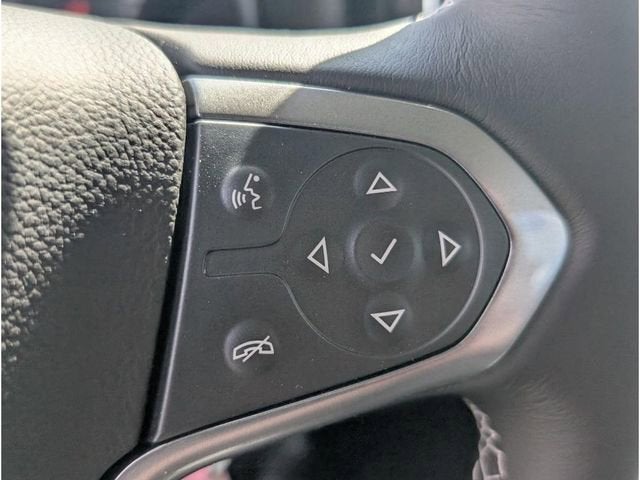

• Steering wheel audio controls
• Power outlet, 110-volt AC
• Key system, 2 spare keys

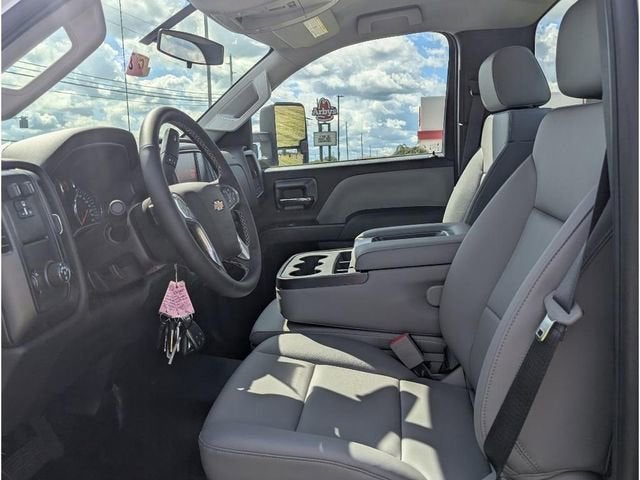

• Seats, front 40/20/40 split-bench, cloth or vinyl 3-passenger.:
  • Includes driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Also includes manually adjustable driver lumbar and storage pockets.
  • Includes (AG1) 10-way power seat.)
• Remote Keyless Entry
• Seat adjuster, driver 10-way power

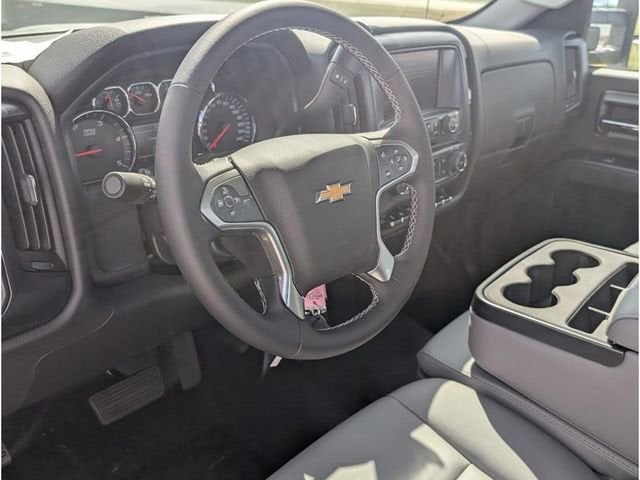

• Steering wheel, leather-wrapped with audio and cruise controls

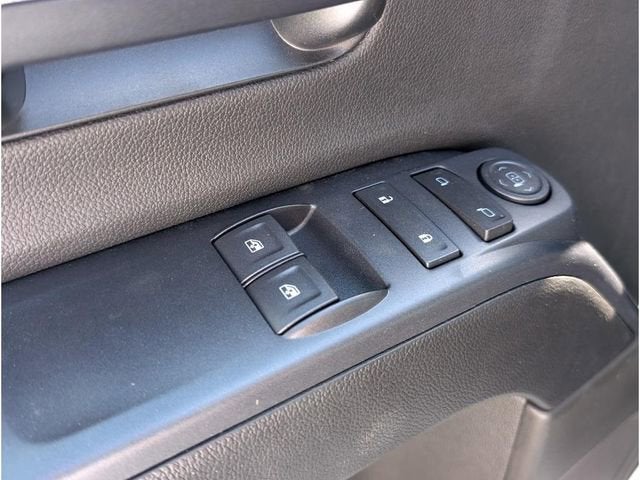

• Windows, power with driver express up and down and express down on all other windows

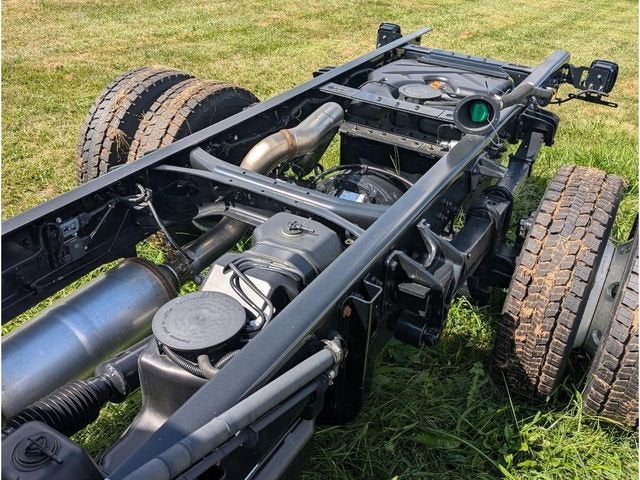

Mechanical

• Wheelbase, 165" (419.1 cm), 84" CA (Requires (F0C) 49" axle to end of frame, (F0D) 63" axle to end of frame or (F0K) 91" axle to end of frame. Requires (PCJ) Vocational Specific Heavy Suspension Package, when ordering (FTA) 7,000 lb. Front axle/(FK6) 7,000 lb. Front suspension or (FTL) 8,000 lb. Front axle/(FSN) 8,000 lb. Front suspension and/or (FU7) 15,500 lb. rear suspension.) (STD)
• Emissions, 50 state certification
• Exhaust system, right side exit, behind rear wheels (Requires (ED9) 165" wheelbase.)
• Brakes, hydraulic, heavy duty Bosch/Meritor/Wabco system with 4-channel (ABS) (Includes (J69) driveline park brake.)
• Axle, Open rear axle, non-locking rear
• Capped Fuel Fill
• Steering, power (Bosch S2 8014 Plus)
• Emissions, USA 50 State certified
• Rear wheel drive
• Incomplete vehicle
• Fuel, diesel B20
• Axle lubricant, rear, synthetic oil EmGard FE -75W-90
• Shock Absorbers, rear (Included with (FTC) 6,250 lb. front axle.)
• Trailering provisions, trailering wire harness only, trailer combined (Stop/Tail/Turn) connection socket and harness mounted at rear of frame.
• Exhaust brake
• Trailer brake controller, integrated
• DPF, diesel particulate filter, manual regeneration: customer regeneration will not be allowed until the DPF load percentage has reached 100% full and a driver information center (DIC) message has been shown
• Axle to End of Frame, 63"
• Battery, top post threaded, battery jump start stud: (located on battery box)
• Differential, heavy-duty locking rear
• Fuel tank, front and rear, 65 gallon total
• Wheelbase, 165" (419.1 cm), 84" CA: (STD)
• Rear suspension, 15,500 lb. (7,031 kg) multi-leaf, vari-rate
• Rear axle, 4.30 ratio: Max road speed: 75 MPH
• Rear axle, 15,500 lb. (7,031 kg), Dana Spicer S16-140, single reduction

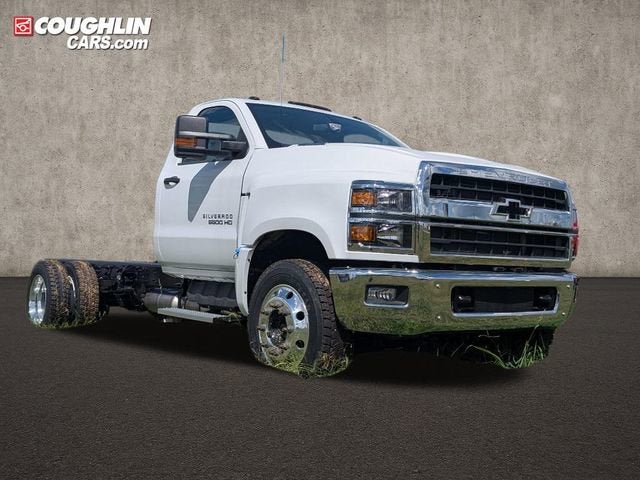

• 5500 HD Series
• GVWR, 19,500 lb. (8845 kg)
• Front axle, 8,000 lb., Dana/Spicer D800-N, "I"-beam, non-driving
• Alternator, 220 amps
• Recovery hooks, front, frame-mounted, black
• 34,000 lb. GCWR (15,422 kg)
• Front stabilizer bar
• Batteries, heavy-duty dual 1300 cold-cranking amps: includes battery box mounted to left side under cab
• Front suspension, 8,000 lb. (3,629 kg) multi-leaf, includes shock absorbers

Package

• Vocational Specific Heavy Suspension Package: Allows the selection of 7,000 lb., 8,000 lb., front axles and/or 15,500 lb. rear spring suspension on trucks that will be upfitted with the following vocational bodies: Utility/Service Bodies, Aerial Lift/Bucket bodies, Front Plow/Rear Spreader Applications, and Landscape Dump Bodies.
• Work Truck Preferred Equipment Group: includes standard equipment

Safety-Exterior

• Daytime Running Lamps, with automatic exterior lamp control

Safety-Interior

• Horn, single-note
• Airbags, Single-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front outboard seating positions; Includes airbag deactivation switch for front outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Rear Vision Camera, display integrated into Radio (Shipped loose in cab for upfitter installation.)
• OnStar, delete
• Airbag deactivation switch, frontal passenger-side (Included and only available with (AY0) airbags.)
• Backup alarm: (Includes (SFW) SEO Calibration for backup alarm.

Safety-Mechanical

• StabiliTrak, Electronic Stability Control System with Traction Control includes Electronic Trailer Sway Control and Hill Start Assist
• Brake, parking, driveline park brake system
• Traction control
