• Air conditioning, single-zone manual
• Assist handles, driver and right-front passenger
• Audio system, AM/FM stereo with MP3 player seek-and-scan, digital clock, TheftLock, random select, auxiliary jack and 2 front door speakers
• Floor covering, Black rubberized-vinyl front
• Headliner, cloth, over driver and passenger
• Heater and defogger with front and side window defoggers

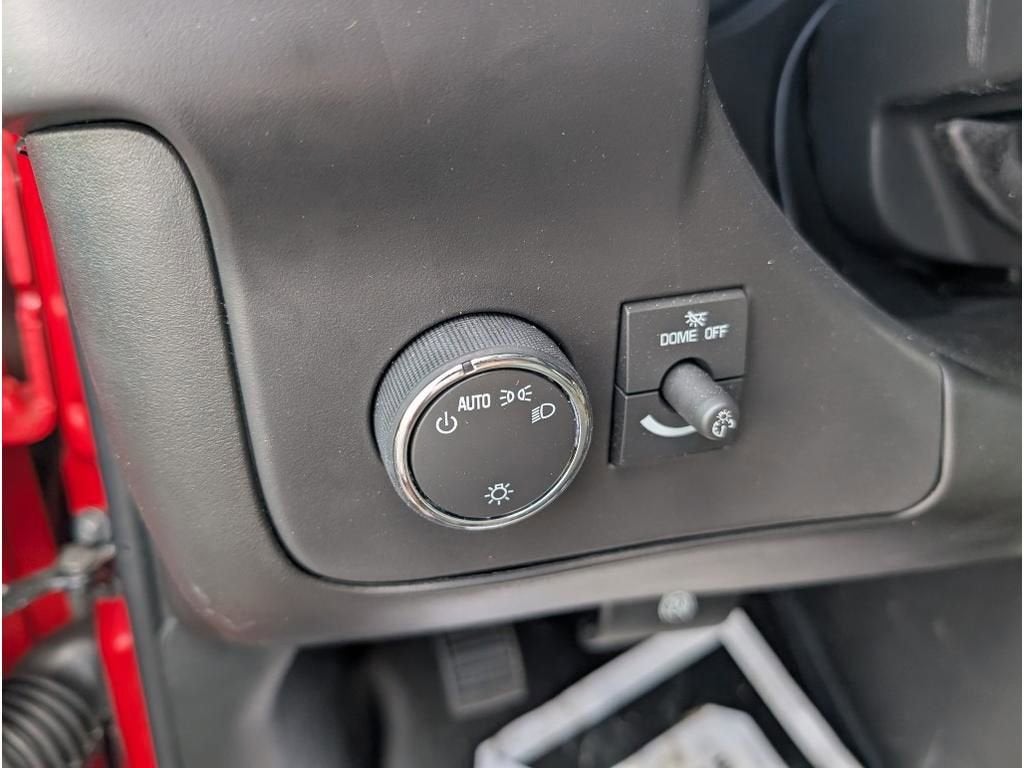

• Lighting, interior with dome light and door handle-activated switches
• Mirror, inside rearview includes Rear Vision Camera display (Included and only available with (UVC) Rear Vision Camera.)
• Oil life monitor
• Power outlet, 120-volt
• Seating arrangement, driver and front passenger high-back bucket includes head restraints and vinyl or cloth trim (Not available with (AJ3) driver-side only frontal airbag.)
• Theft-deterrent system, vehicle, PASS-Key III
• Visors, driver and front passenger, cloth, padded
• Warning tones, headlamp on and key-in-ignition

• Alternator, 150 amps
• Battery, 600 cold-cranking amps maintenance-free with rundown protection and retained accessory power
• Body, standard
• Brakes, 4-wheel antilock, 4-wheel disc
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Frame, ladder-type
• Fuel tank capacity, mid-frame and approximately 32 gallons (121.1L)
• Incomplete vehicle certification
• Rear axle, 3.42 ratio (Requires (R04) single rear wheel configuration.)
• Rear wheel drive
• Steering, power
• Suspension, front independent with coil springs and stabilizer bar
• Suspension, rear hypoid drive axle with multi-leaf springs

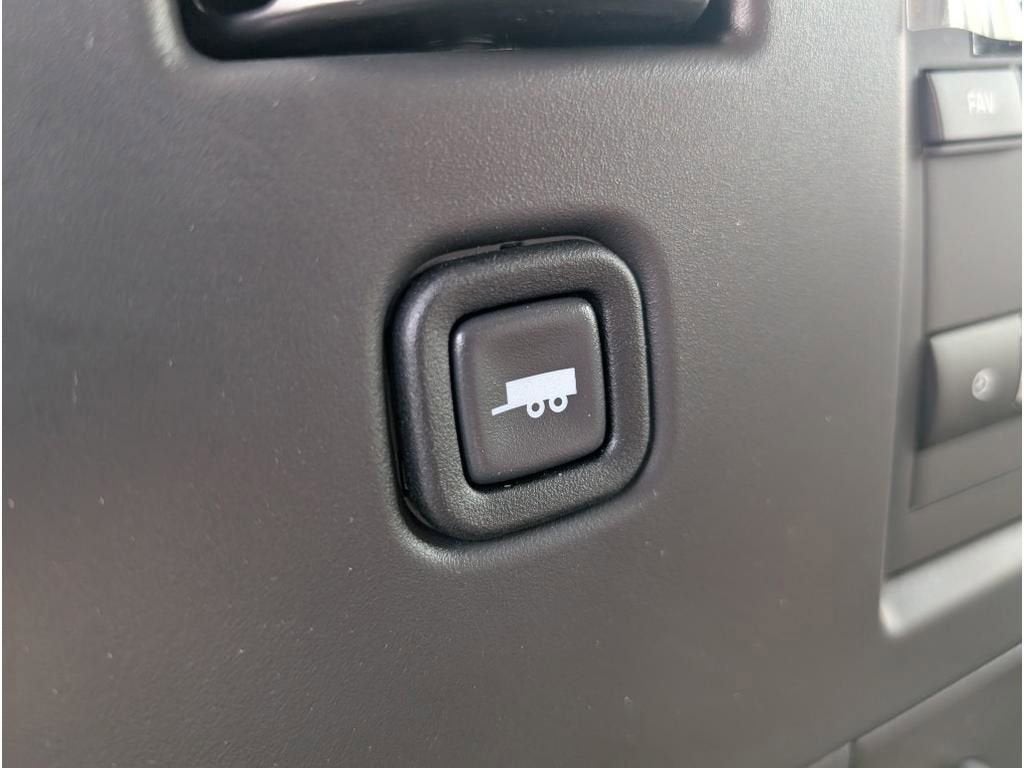

• Tow/haul mode selector, instrument panel-mounted

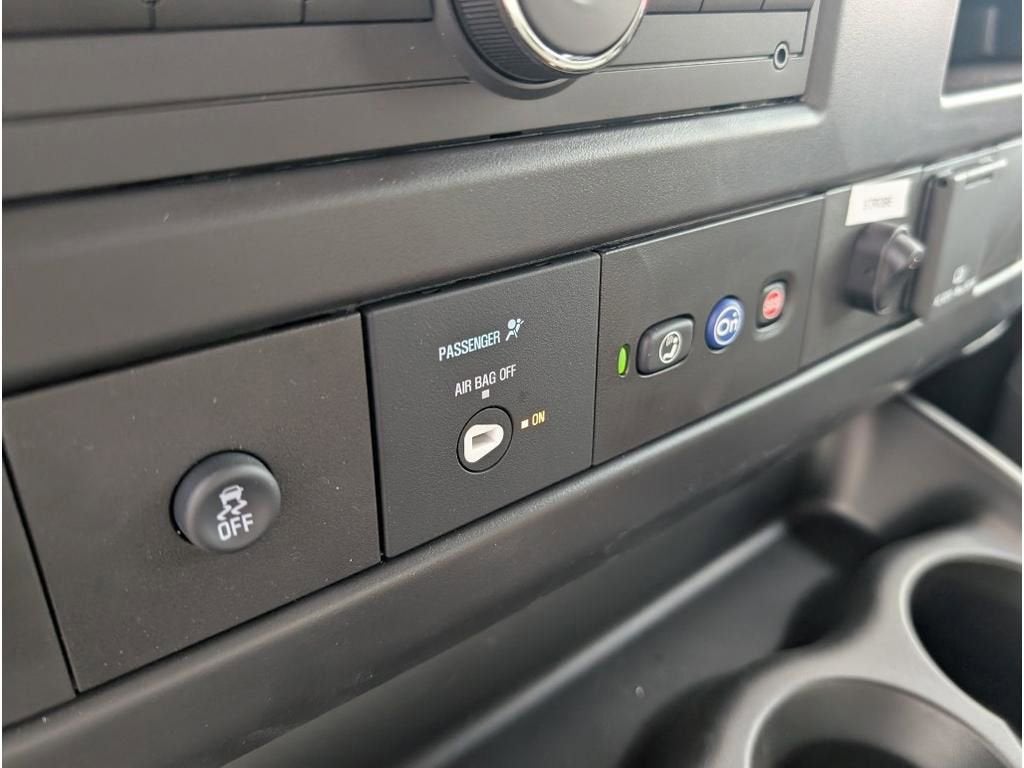

• Airbag deactivation switch, frontal passenger-side (Not available with (AJ3) frontal, driver-side only airbag. Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Airbags, frontal, front driver and right front passenger includes passenger-side frontal airbag deactivation switch (Included with (ZX2) driver and right-front passenger high-back bucket seats or (ZP0) driver and passenger temporary seats. Not available with (ZX1) driver only high-back bucket seat or (AJ3) driver-side only frontal airbag. Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Airbags, seat-mounted side-impact for driver and right-front passenger and roof-rail mounted head-curtain side-impact (Included with (C4M) 9900 lb. (4490 kg) GVWR. Available on (JFF) 10100 lb. (4581 kg) GVWR, (C7N) 12300 lb. (5579 kg) GVWR, and (C7I) 14200 lb. (6441 kg) GVWR. Not available with (B3D) School Bus Package, (ANC) Shuttle Bus Package, (YF1) RV Package, and (9T7) right-hand door delete. Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Daytime Running Lamps
• Hill Start Assist
• OnStar and Chevrolet connected services capable (Not available with (YF1) RV Package or (YF2) Ambulance Package. Included with (FDR) Fleet Daily Rental order types. Terms and limitations apply. See onstar.com or dealer for details.)
• OnStar Basics (OnStar Fleet Basics for Fleet) Drive confidently with core OnStar services including remote commands, built-in voice assistance, real-time traffic and navigation, and Automatic Crash Response to help if you're in need. (OnStar Basics includes remote commands, Navigation, Voice Assistance, and Automatic Crash Response, for eligible vehicles with compatible software. For MY25 vehicles, OnStar Basics is standard for 8 years; OnStar plan, working electrical system, cell reception and GPS signal required. OnStar links to emergency services. Service coverage varies with conditions and location. Service availability, features and functionality vary by device and software version. See onstar.com for details and limitations.)
• Rear Vision Camera camera and cable shipped loose (Display included with (DRJ) inside rearview mirror.)
• StabiliTrak, traction assistance and vehicle stability enhancement system
• Tire Pressure Monitor System (does not monitor spare tires) (Required with (C4M) 9900 lbs. (4490 kg) GVWR and (R04) single rear 4 - 16" x 6.5" (40.6 cm x 16.5 cm) wheels.)

TRANSMISSION, 8-SPEED AUTOMATIC, HEAVY-DUTY

• electronically controlled with overdrive and tow/haul mode. Includes Cruise Grade Braking
• Powertrain Grade Braking

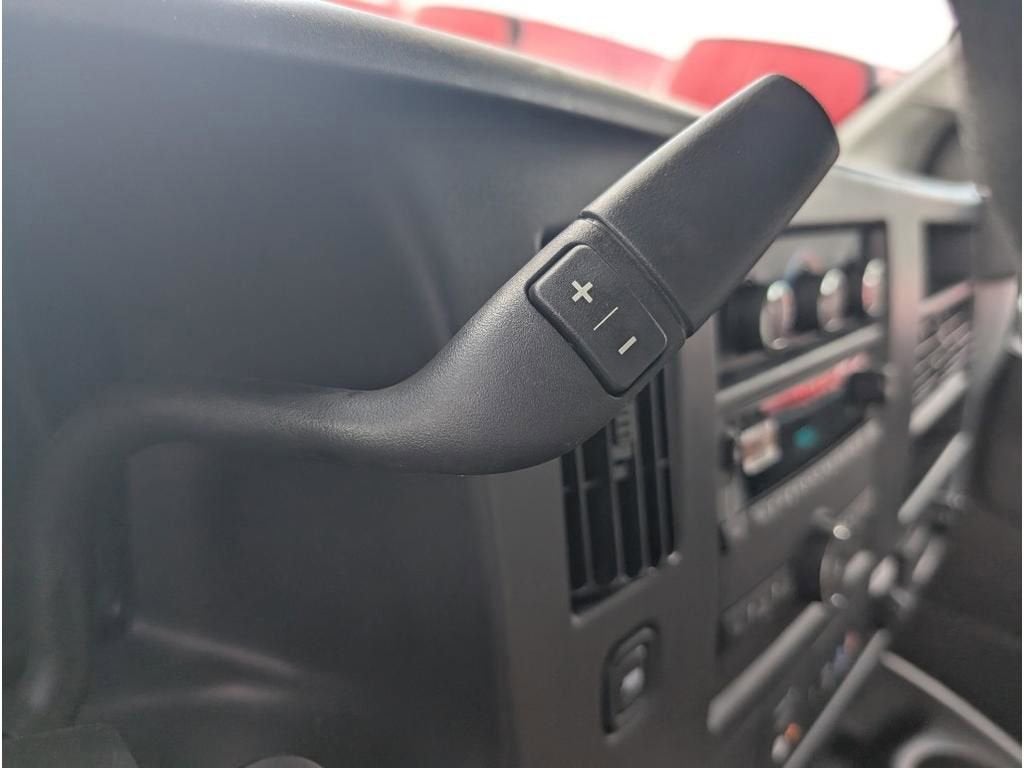

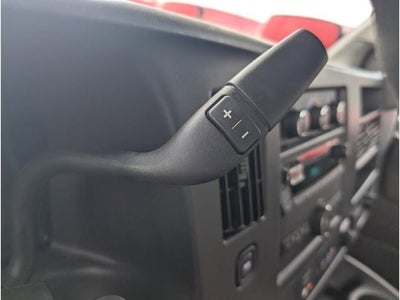

• and Tap-Up/Tap-Down Driver Shift Control

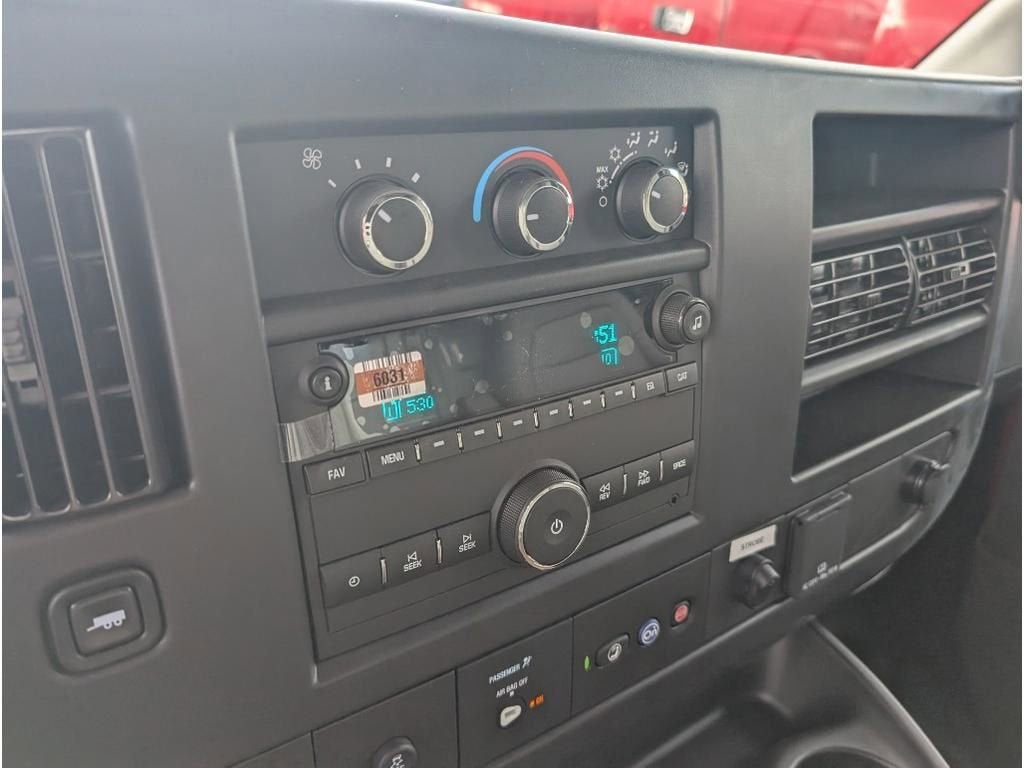

AUDIO SYSTEM, AM/FM STEREO WITH MP3 PLAYER

• seek-and-scan
• digital clock
• TheftLock
• random select
• auxiliary jack and 2 front door speakers (STD)

ENGINE, 6.6L V8

• with Direct Injection and Variable Valve Timing
• gasoline
• (401 hp [299 kW] @ 5200 rpm
• 464 lb-ft of torque [629 N-m] @ 4000 rpm) (Includes external oil cooler.

TIRES, FRONT LT225/75R16E ALL-SEASON, BLACKWALL

• Jack and spare tire equipment bracket are not included.)

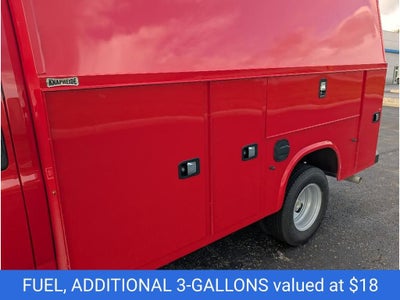

FUEL, ADDITIONAL 3-GALLONS

• 3 gallons of fuel in addition to normal assembly plant fill

TIRES, REAR LT225/75R16E ALL-SEASON, BLACKWALL

• Jack and spare tire equipment bracket are not included.)

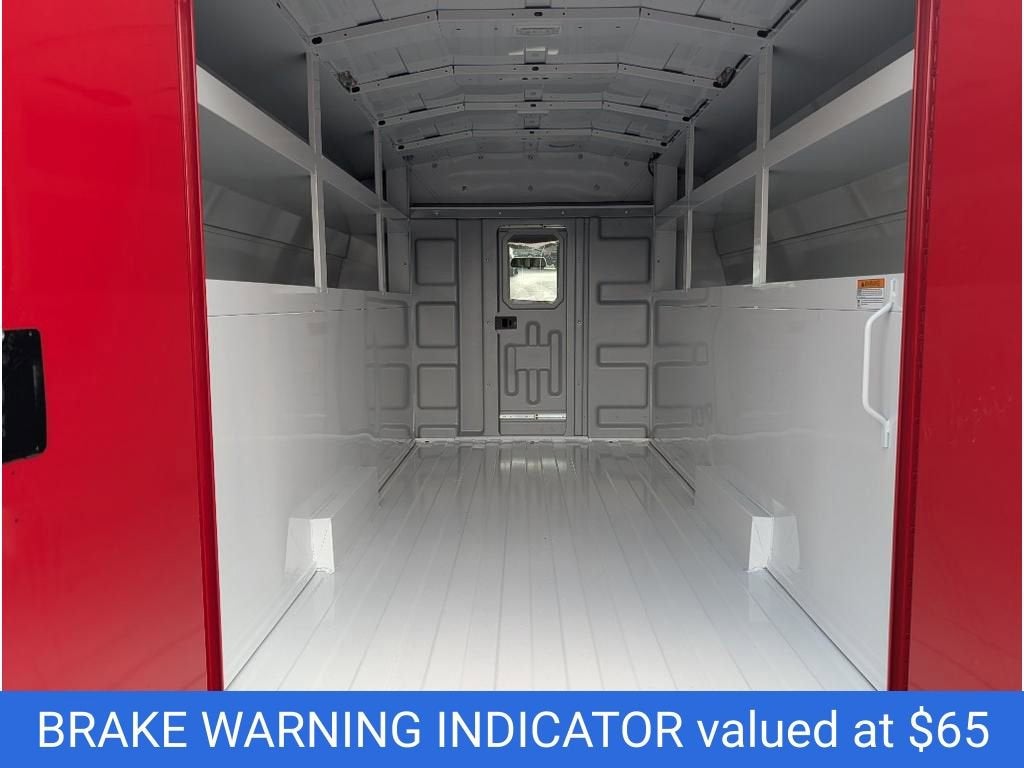

BRAKE WARNING INDICATOR

• monitors brake system pressure
• with loss of pressure an audible alarm (chime) and cluster telltale is lit

MIRRORS, OUTSIDE WIDE-STANCE SAIL PANEL MOUNTED (VELVAC).

• Provides Velvac convex combination RH and LH outside rear view mirrors that are sail panel mounted with arms that provide a wide stance. Mirrors can be utilized with bodies that are up to 96 inch width. Mirrors provide a 63.3 sq. inch flat glass positioned over a 30.1 sq. inch convex glass within a common head. Mirrors are shipped loose in vehicle

BODY, STANDARD

• (STD)

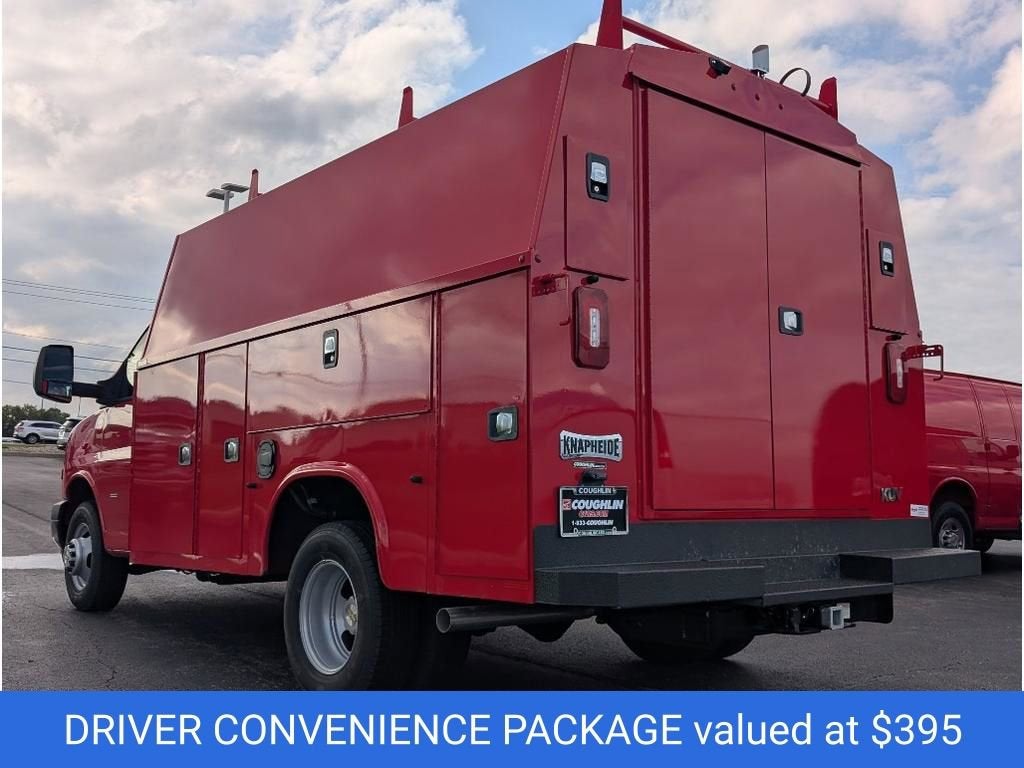

DRIVER CONVENIENCE PACKAGE

• includes Tilt-Wheel and (K34) cruise control

WORK VAN PREFERRED EQUIPMENT GROUP

• Includes standard equipment

DOOR LOCKS, POWER

• with lock-out protection

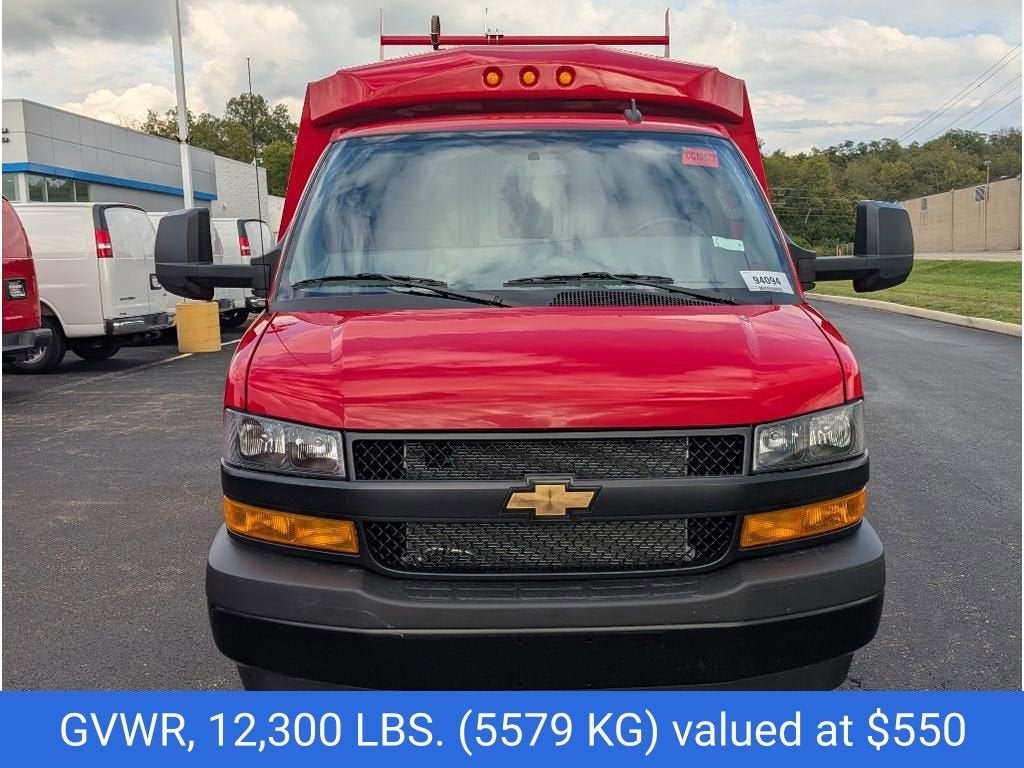

GVWR, 12,300 LBS. (5579 KG)

• (Includes (R05) dual rear wheel configuration.

POWER CONVENIENCE PACKAGE

• includes (A31) power windows and (AU3) power door locks

ANTENNA EQUIPMENT

• includes additional antenna
• cable and ground plate. Provides additional ability to relocate standard OnStar antenna
• cable length 25 ft. Ships loose.

BATTERY, HEAVY-DUTY 770 COLD-CRANKING AMPS

• maintenance-free with rundown protection and retained accessory power

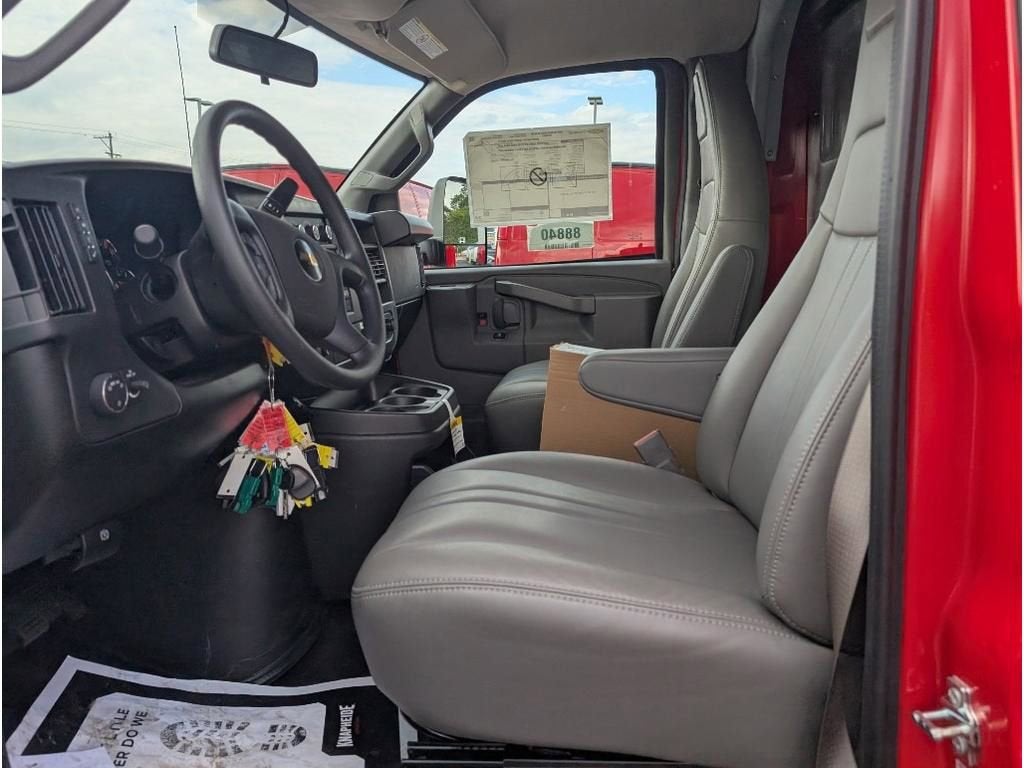

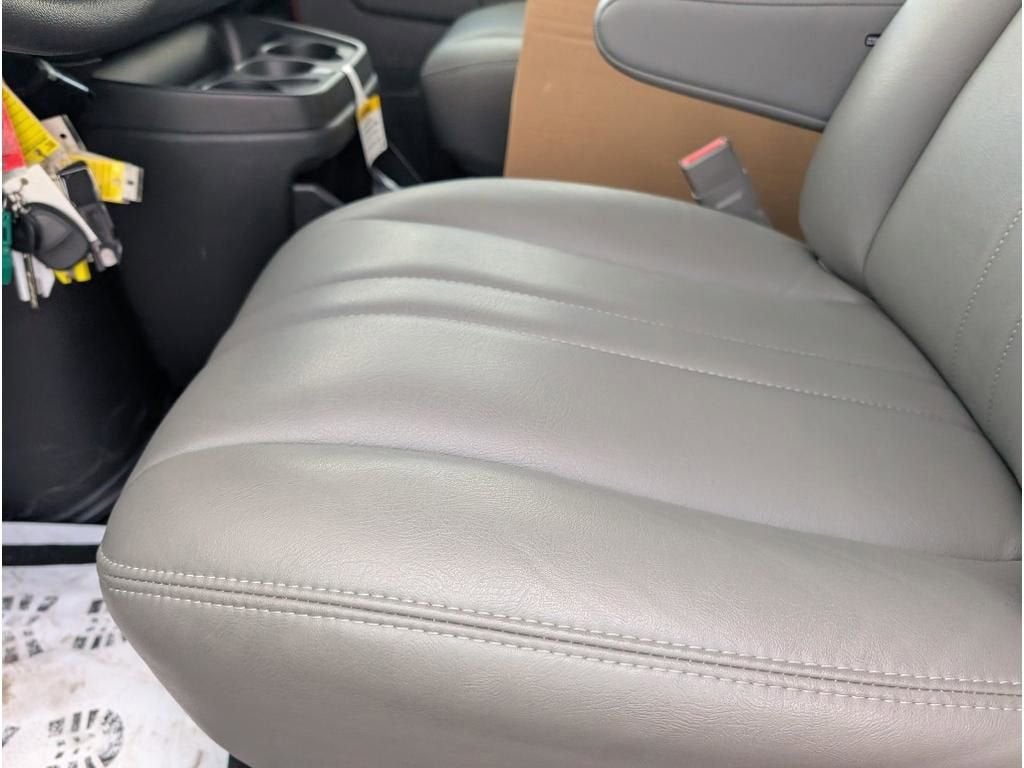

SEATING ARRANGEMENT, DRIVER AND FRONT PASSENGER HIGH-BACK BUCKET

• includes head restraints and vinyl or cloth trim (STD)

• DIFFERENTIAL HEAVY-DUTY LOCKING REAR

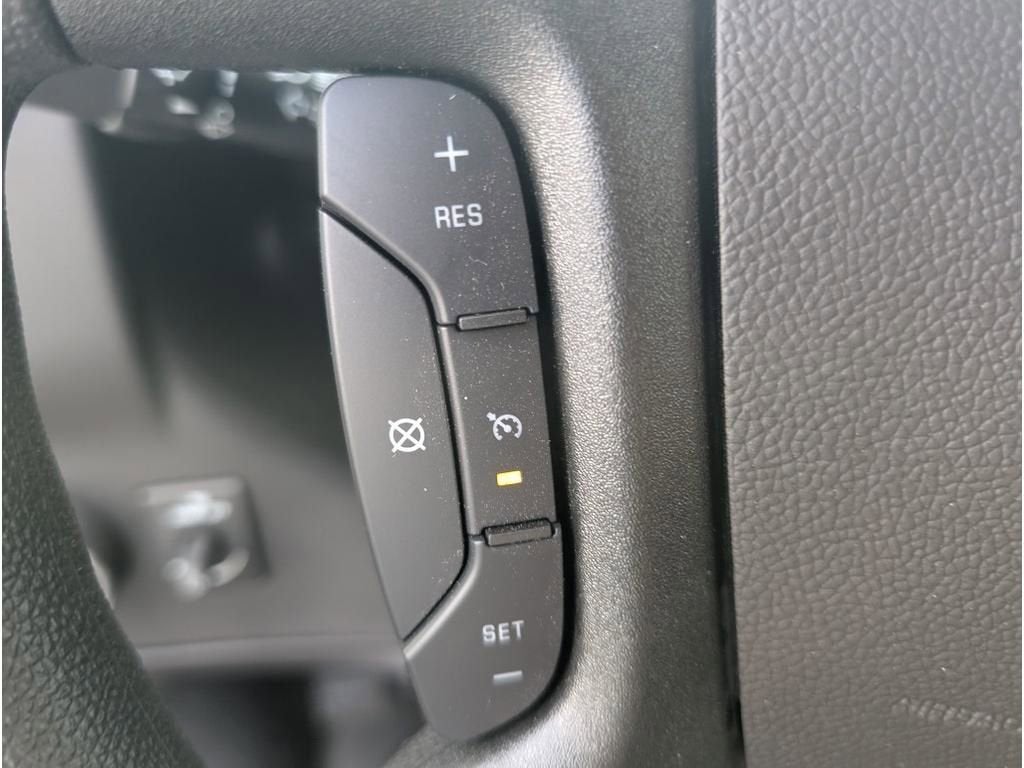

• CRUISE CONTROL

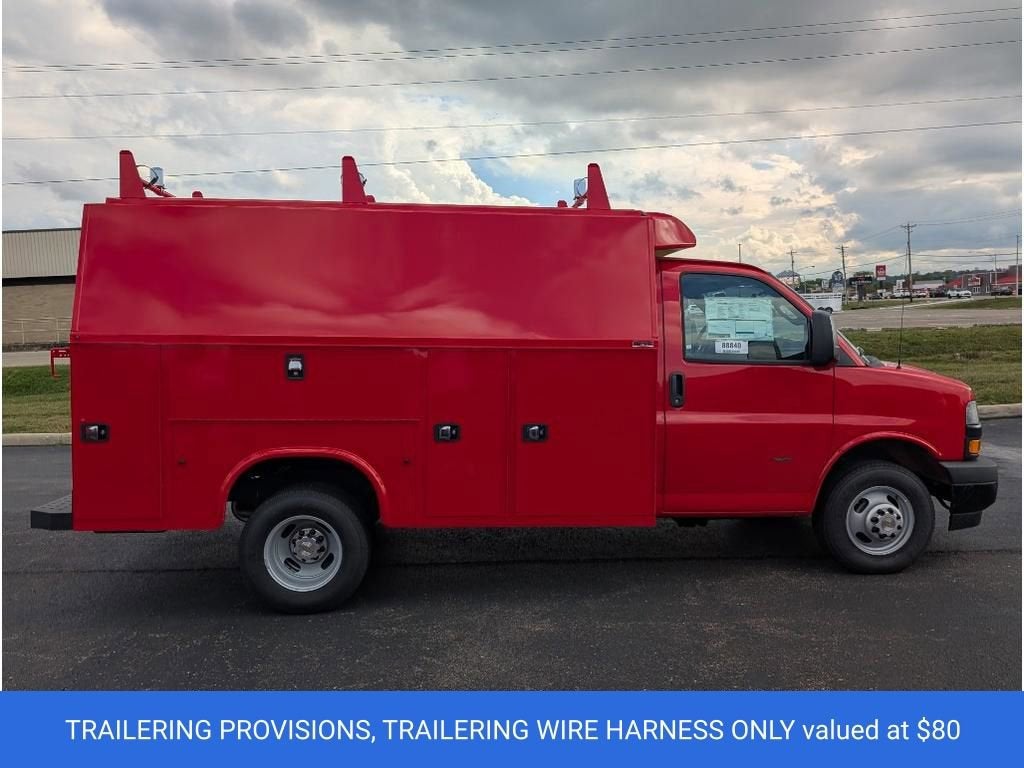

• TRAILERING PROVISIONS TRAILERING WIRE HARNESS ONLY
• AUDIO SYSTEM AM/FM STEREO WITH MP3 PLAYER seek-and-scan digital clock TheftLock random select auxiliary jack and 2 front door speakers (STD)
• ENGINE 6.6L V8 with Direct Injection and Variable Valve Timing gasoline (401 hp [299 kW] @ 5200 rpm 464 lb-ft of torque [629 N-m] @ 4000 rpm) (Includes external oil cooler.
• TIRES FRONT LT225/75R16E ALL-SEASON BLACKWALL Jack and spare tire equipment bracket are not included.)
• REAR AXLE 3.73 RATIO
• FUEL ADDITIONAL 3-GALLONS 3 gallons of fuel in addition to normal assembly plant fill
• TIRES REAR LT225/75R16E ALL-SEASON BLACKWALL Jack and spare tire equipment bracket are not included.)
• WHEEL CONFIGURATION REAR DUAL
• BRAKE WARNING INDICATOR monitors brake system pressure with loss of pressure an audible alarm (chime) and cluster telltale is lit
• MIRRORS OUTSIDE WIDE-STANCE SAIL PANEL MOUNTED (VELVAC). Provides Velvac convex combination RH and LH outside rear view mirrors that are sail panel mounted with arms that provide a wide stance. Mirrors can be utilized with bodies that are up to 96 inch width. Mirrors provide a 63.3 sq. inch flat glass positioned over a 30.1 sq. inch convex glass within a common head. Mirrors are shipped loose in vehicle
• BODY STANDARD (STD)

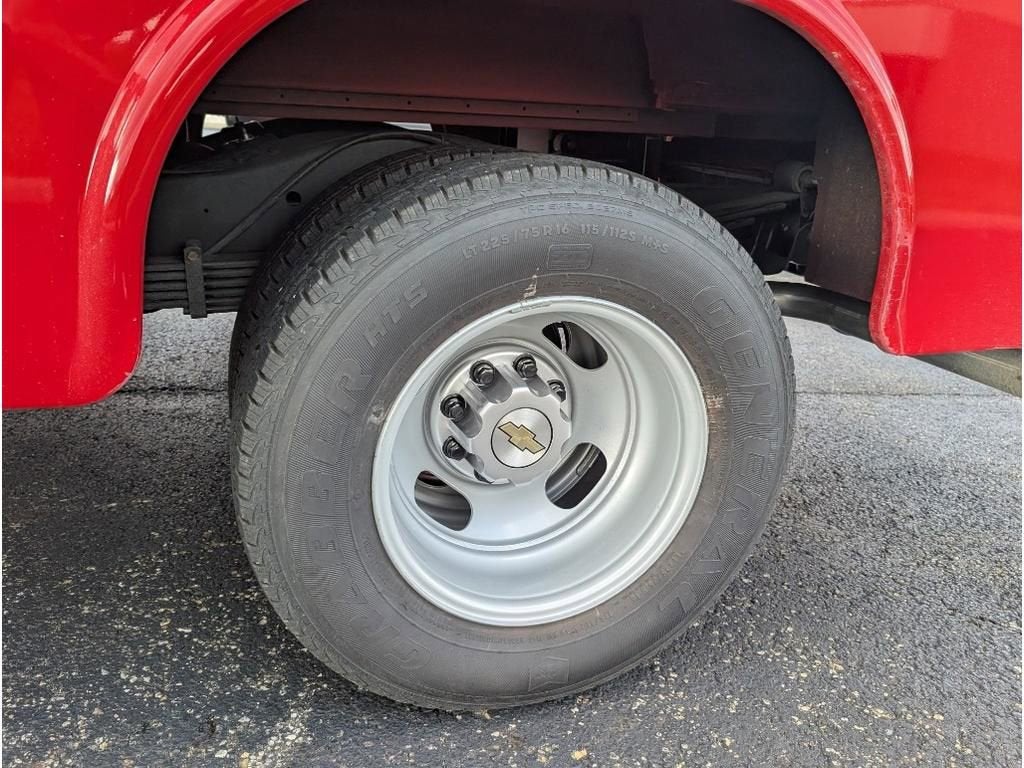

• WHEELS 6 - 16" X 6.5" (40.6 CM X 16.5 CM) 8-LUG PAINTED STEEL HEAVY DUTY
• RED HOT
• DRIVER CONVENIENCE PACKAGE includes Tilt-Wheel and (K34) cruise control
• MEDIUM PEWTER VINYL SEAT TRIM
• PAINT SOLID
• TRANSMISSION 8-SPEED AUTOMATIC HEAVY-DUTY electronically controlled with overdrive and tow/haul mode. Includes Cruise Grade Braking Powertrain Grade Braking and Tap-Up/Tap-Down Driver Shift Control
• WORK VAN PREFERRED EQUIPMENT GROUP Includes standard equipment
• DOOR LOCKS POWER with lock-out protection
• GVWR 12 300 LBS. (5579 KG) (Includes (R05) dual rear wheel configuration.
• POWER CONVENIENCE PACKAGE includes (A31) power windows and (AU3) power door locks
• ANTENNA EQUIPMENT includes additional antenna cable and ground plate. Provides additional ability to relocate standard OnStar antenna cable length 25 ft. Ships loose.

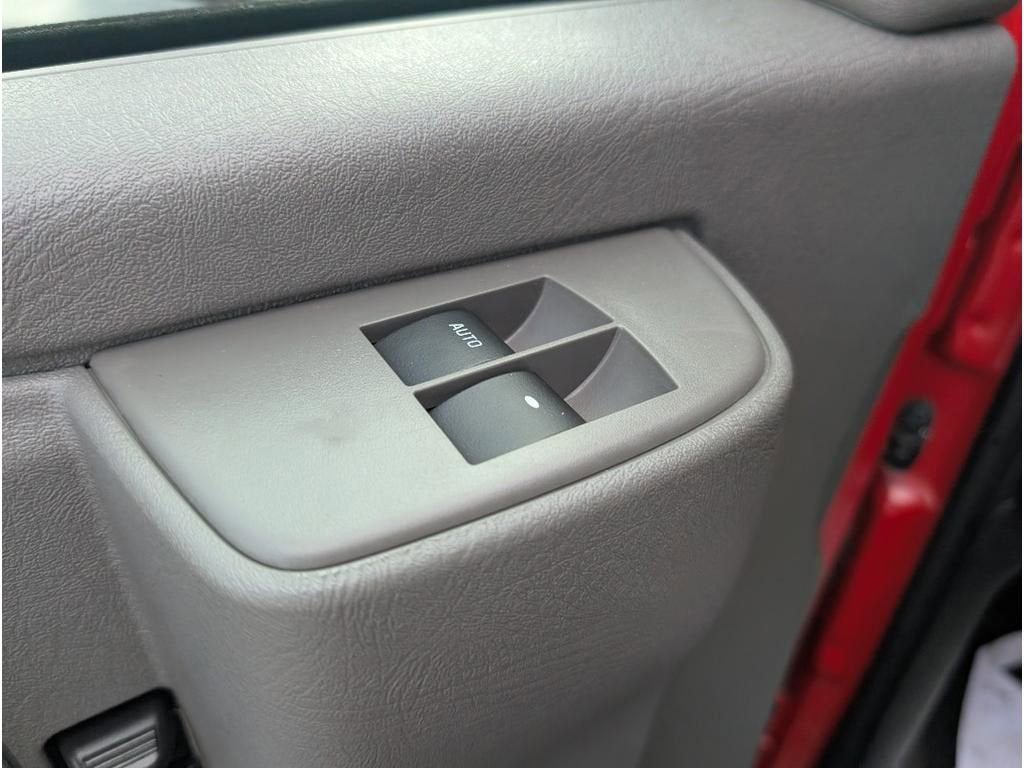

• WINDOWS POWER
• BATTERY HEAVY-DUTY 770 COLD-CRANKING AMPS maintenance-free with rundown protection and retained accessory power
• SEATING ARRANGEMENT DRIVER AND FRONT PASSENGER HIGH-BACK BUCKET includes head restraints and vinyl or cloth trim (STD)
• Rear Wheel Drive
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Intermittent Wipers
• AM/FM Stereo
• MP3 Capability
• Auxiliary Audio Input
• Bucket Seats
• Vinyl Seats
• Bucket Seats
• Trip Computer
• Immobilizer
• Power Outlet
• Power Outlet
• A/C
• Rear Defrost
• Back-Up Camera
• Daytime Running Lights
• Traction Control
• Stability Control
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag On/Off Switch
• Front Side Air Bag
• Rear Side Air Bag
• Front Head Air Bag
• Passenger Air Bag On/Off Switch
• Telematics
• Requires Subscription
• Back-Up Camera
• Tire Pressure Monitor
• Navigation System
• Telematics
• Requires Subscription

• Brakes
• Brake ABS System: 4-wheel
• Brake Type: Pwr
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 13.58 x 1.6
• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 150
• Emissions
• Tons/yr of CO2 Emissions : 15K mi/year
• Exterior Dimensions
• Cab to Axle (in): 80.00
• Cab to End of Frame (in): 148.45
• Frame Width, Rear (in): 42.00
• Front Bumper to Back of Cab (in): 98.70
• Ground Clearance, Front (in): 9.05
• Ground Clearance, Rear (in): 8.40
• Ground to Top of Frame (in): 31.45
• Height, Overall (in): 83.95
• Length, Overall (in): 247.15
• Overhang, Front (in): 39.70
• Wheelbase (in): 139
• Width, Max w/o mirrors (in): 94.53
• Frame
• Frame Type: Ladder-Type
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 32
• Fuel Tank Location: Mid-frame
• Interior Dimensions
• Front Head Room (in): 40.85
• Front Hip Room (in): 65.48
• Front Leg Room (in): 41.35
• Front Shoulder Room (in): 68.85
• Passenger Capacity: 2
• Steering
• Steering Ratio (:1), On Center: 17.2
• Steering Type: Pwr
• Turning Diameter - Curb to Curb (ft): 43.4
• Turning Diameter - Wall to Wall (ft): N/A
• Summary
• Body Code: ZW9
• Body Style: 139.0" WB

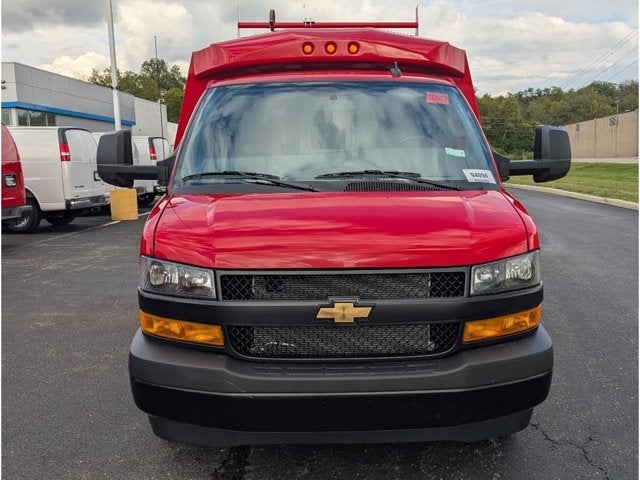

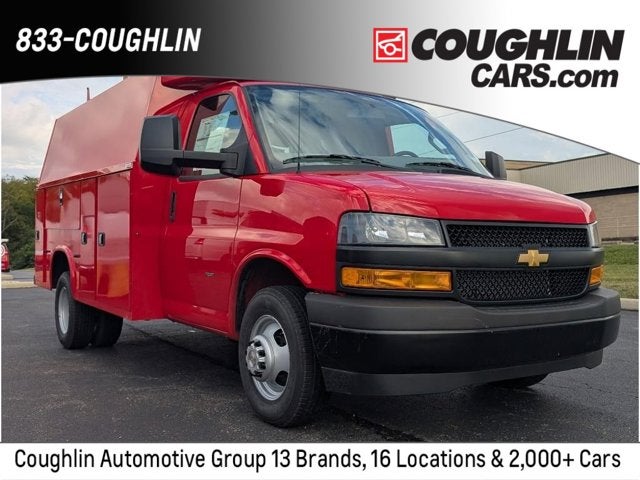

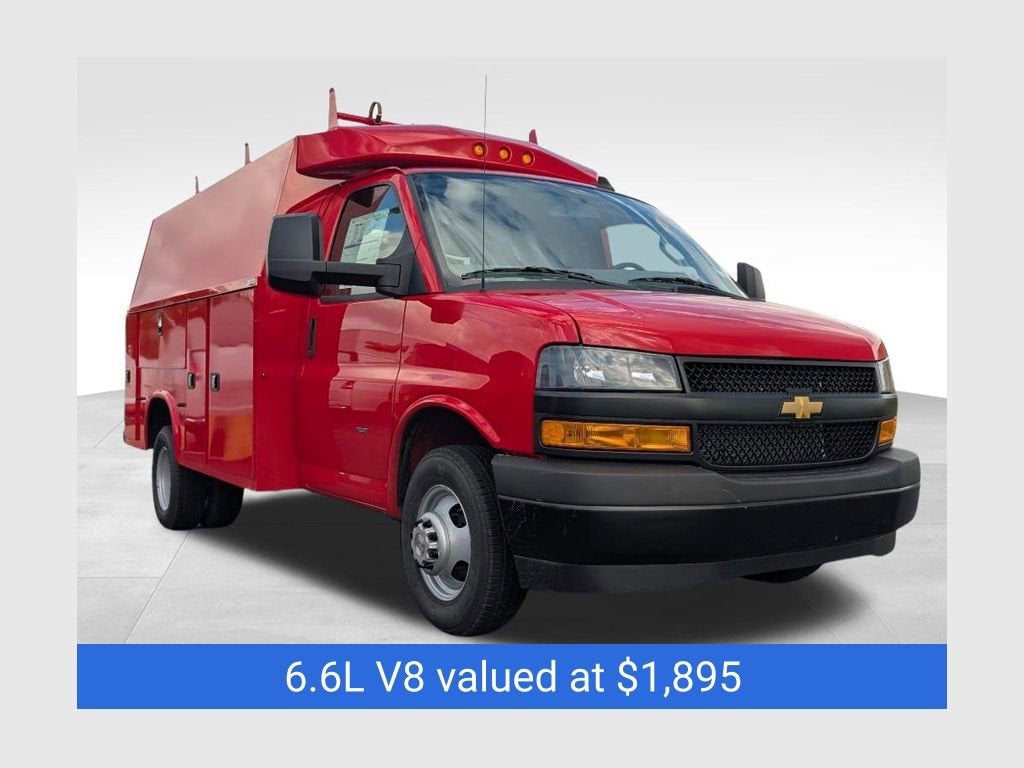

• Vehicle Name: Chevrolet Express Commercial Cutaway
• Suspension
• Axle Capacity - Front (lbs): 4100
• Axle Capacity - Rear (lbs): 6084
• Axle Ratio (:1) - Rear: 3.73
• Axle Type - Front: Independent
• Axle Type - Rear: Full-Floating
• Shock Absorber Diameter - Front (mm): 35.0
• Shock Absorber Diameter - Rear (mm): 35.0
• Spring Capacity - Front (lbs): 4100
• Spring Capacity - Rear (lbs): 6084
• Stabilizer Bar Diameter - Front (in): 1.38
• Suspension Type - Front: Indep Coil Spring
• Suspension Type - Rear: Multi-Leaf
• Tires
• Front Tire Capacity (lbs): 2335
• Front Tire Order Code: XHF
• Front Tire Size: LT225/75R16E
• Rear Tire Capacity (lbs): 2150
• Rear Tire Order Code: YHF
• Rear Tire Size: LT225/75R16E
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Revolutions/Mile : 45 mph - Spare
• Weight Information
• Curb Weight - Front (lbs): 2889
• Curb Weight - Rear (lbs): 1437
• Gross Axle Wt Rating - Front (lbs): 4100
• Gross Axle Wt Rating - Rear (lbs): 6084
• Gross Combined Wt Rating (lbs): 16000
• Gross Vehicle Weight Rating Cap (lbs): 12300
• Wheels
• Front Wheel Material: Steel
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Material: Steel
• Rear Wheel Size (in): 16 x 6.5
