• Cab Mounts, All steel low cab forward - BBC 66.8 in. (169.7 cm) in 45 deg. mechanical tilt with torsion assist.
• Windows, Tinted glass
• Two way roof ventilator
• Mirror, Dual cab mounted exterior mirrors
• Paint Scheme, Solid
• Color, Arctic White

• Steering, Integral power steering - with variable 18.8-20.9:1 gear ratio. Tilt and telescoping steering column.
• Cruise control
• Power windows & door locks

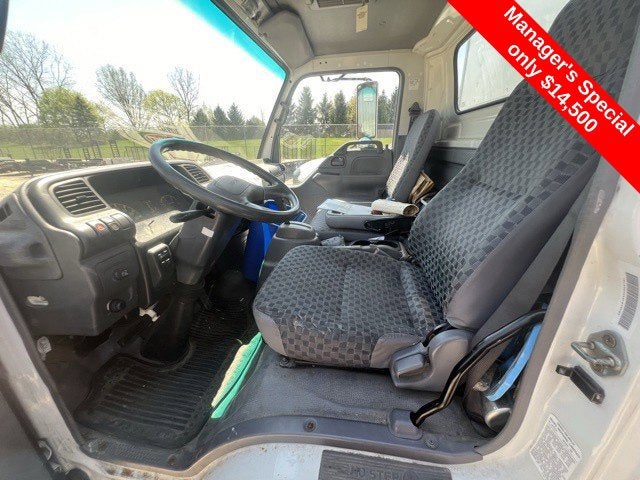

• Seats, Driver, Jacquard flat woven breatheable cloth covered reclining highback - with two single occupant fold down passenger seats
• Floor mats

ISUZU DIESEL ENGINE, 4HK1-TC, 317 CID (5.19L), 190 GROSS HP AT 2600 RPM: 387 LB-FT GROSS TORQUE AT 1500 RPM. 4 CYLINDER, 16 VALVE, FOUR CYCLE, OVERHEAD CAM, TURBOCHARGED, INTERCOOLED, WATER COOLED EGR VALVE, DIRECT INJECTION, ELECTRONICALLY CONTROLLED COMMON RAIL FUEL SYSTEM

• Engine cruise control and idle up function. Oil level check switch and light. Rear engine cover. (STD)

• Vehicle
• Front Frame Rating: - TBD -
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Cold Cranking Amps @ 0° F (2nd): 750
• Maximum Alternator Capacity (amps): 110
• Maximum Alternator Watts: 1320
• Cooling System
• Total Cooling System Capacity (qts): 18.4
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4700
• Gross Axle Wt Rating - Rear (lbs): 7950
• Curb Weight - Front (lbs): 3836
• Curb Weight - Rear (lbs): 1687
• Gross Vehicle Weight Rating Cap (lbs): 12000
• Gross Combined Wt Rating (lbs): 18000
• Suspension
• Suspension Type - Front: Tapered Leaf
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 8440
• Spring Capacity - Rear (lbs): 9880
• Axle Type - Front: Reverse I-Beam
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 6830
• Axle Capacity - Rear (lbs): 11020
• Axle Ratio (:1) - Rear: 5.125
• Shock Absorber Diameter - Front (mm): 45
• Shock Absorber Diameter - Rear (mm): 45
• Stabilizer Bar Diameter - Front (in): 1.65
• Brakes
• Brake Type: Power
• Brake ABS System: Four Wheel
• Disc - Front (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 11.5 x 0.51
• Drum - Rear (Yes or ): Yes
• Rear Drum Diam x Width (in): 12.6 x 2.95
• Tires
• Front Tire Order Code: I53/I69
• Rear Tire Order Code: I53/I34
• Front Tire Size: 215/85R16E
• Rear Tire Size: 215/85R16E
• Front Tire Capacity (lbs): 2430
• Rear Tire Capacity (lbs): 2210
• Revolutions/Mile @ 45 mph - Front: 682.9
• Revolutions/Mile @ 45 mph - Rear: 682.9
• Number Of Tires Front: 2
• Number Of Tires Rear: 4
• Wheels
• Front Wheel Size (in): 16 x 6.0
• Rear Wheel Size (in): 16 x 6.0
• Front Wheel Offset (mm): 127.0
• Rear Wheel Offset (mm): 127.0
• # of Bolt Holes - Front: 6
• # of Bolt Holes - Rear: 6
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Front Bolt Pattern: 6 Hole JIS 8.75"
• Rear Bolt Pattern: 6 Hole JIS 8.75"
• Steering
• Steering Type: Power
• Steering Ratio (:1), On Center: 18.8 - 20.9
• Steering Ratio (:1), At Lock: 18.8 - 20.9
• Turning Diameter - Curb to Curb (ft): 51.9
• Turning Diameter - Wall to Wall (ft): 56.5
• Frame
• Frame Type: Ladder
• Sect Modulus Rails Only (in³): 7.20
• Frame RBM (N/A): 316800
• Frame Strength (lbs): 44000
• Frame Thickness (in): 8.5 X 2.76 X 0.24
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 33
• Fuel Tank Location: Side mounted
• Exterior Dimensions
• Wheelbase (in): 176.0
• Length, Overall w/o rear bumper (in): 265.3
• Width, Max w/o mirrors (in): 78.5
• Height, Overall (in): 88.2
• Overhang, Front (in): 46.1
• Overhang, Rear w/o bumper (in): 43.1
• Front Bumper to Back of Cab (in): 66.8
• Cab to Axle (in): 155.4
• Cab to End of Frame (in): 198.5
• Ground to Top of Frame (in): 32.0
• Frame Width, Rear (in): 33.5
• Ground Clearance, Front (in): 8.6
• Ground Clearance, Rear (in): 8.6
• Body Length Default Value (ft): 20
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 42.5
• Front Leg Room (in): 39.2
• Front Shoulder Room (in): 70.7
• Front Hip Room (in): 66.6
• Summary

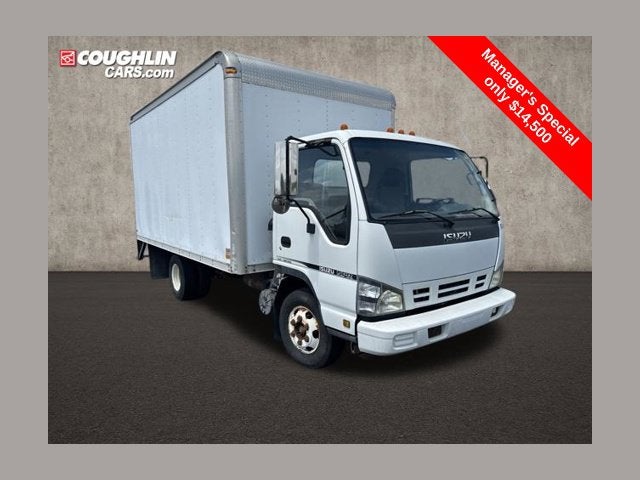

• Vehicle Name: Isuzu W3S042 NPR DSL REG
• Body Style: Tilt Chassis Cab
• Medium Duty Performance
• Driver Ratio: 1
• Torque @ Clutch Engage (ft-lbs): 265
• Torque Converter: 1.745
• Static Loaded Radius (in): 15.1
• Max Speed For Gradeability: 72
